Hydraulic Hose EN853-1SN/ SAE100R1

  • Application

    Hydraulics, crude, fuel, and lubricating oils. Meet EN853-1SN/SAE 517 100R1AT with thin cover.

  • Construction

    Tube
    NBR - Oil resistan synthetic rubber.
    Cover
    CR - Oil, abrasion and weather aging resistant synthetic rubber.
    Reinforcement
    Single wire braid.
    Temp.Range
    -40 ℃ ~ +100℃.
    Operating temperature in excess of 100℃may materially reduce the service life of hose assembly.

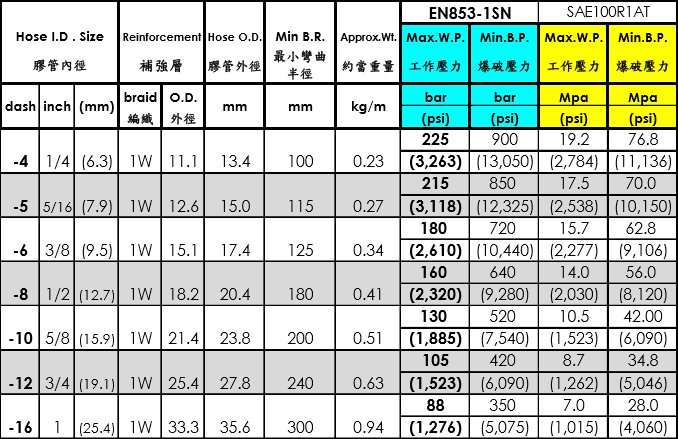

Product Information
